Accelerating your markup experience with MarkupX Pro

When it comes to innovative technologies, MarkupX Pro stands out by enabling a unique integrated user experience that connects the markup world directly to the designer environment. Developed by MarkupX Inc., MarkupX Pro bridges the gaps in coordination by bringing your PDF markups directly into Autodesk Revit, AutoCAD, and Civil 3D environments.

Regarding Return on Investment (ROI), this tool has been proven to save your teams between 1 and 3 minutes per markup. With multiple team members working on large-scale projects, there could be thousands of markups — thus, significant time savings can be realised with MarkupX Pro, allowing you to complete your tasks in record time as time spent managing markups can quickly add up.

The tool is quick to install, easy to use with little or no training, and completely eliminates the need for dual monitors and wasted time searching for markups. MarkupX Pro removes any disconnect during design reviews by creating a seamless transition between designers and reviewers, enabling projects to be completed quickly, accurately, and on time.

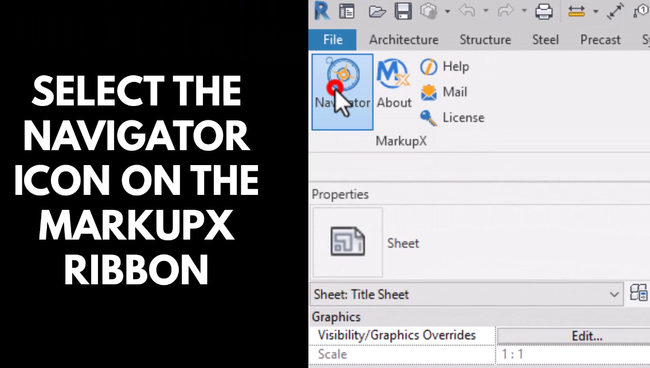

MarkupX Pro loads seamlessly within your application, and the Navigator can be accessed directly through the tool.

Processing markups with MarkupX Pro

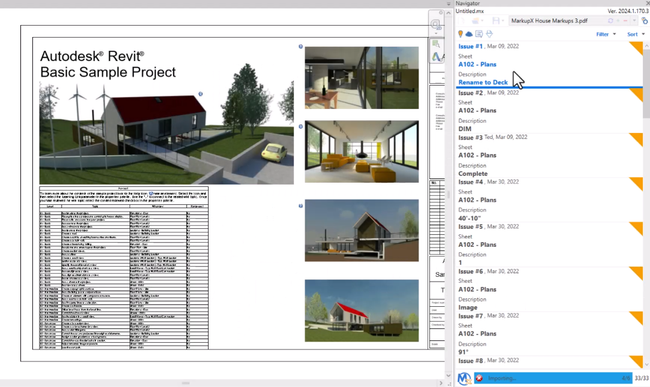

When selecting a markup in the Navigator, it instantly zooms and displays the markup in your AutoCAD or Revit session, which you can then process. Addressing markups is essentially a simple five-step process with MarkupX Pro:

• Step 1: Start MarkupX Navigator

• Step 2: Load a PDF, which will load all the issues into the Navigator Panel.

• Step 3: Select an issue from the list view, which will load the sheet/layout, zoom in, and display the markup.

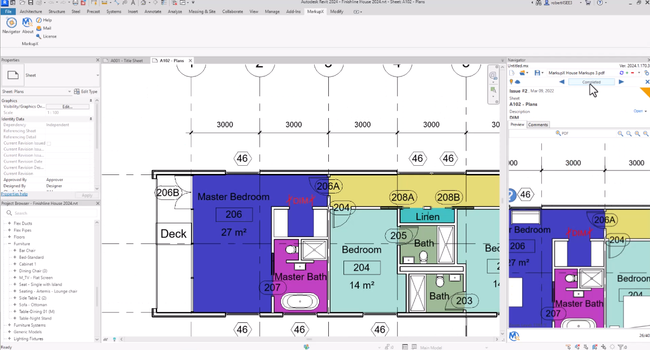

• Step 4: Double-click on an issue to enter edit mode, where you can review the issue details, create comments, and edit statuses.

• Step 5: Make all necessary changes and mark the issue as completed, which will then automatically take you to the next issue.

Place Revit Families from a PDF with MarkupX Pro

Not only does the tool offer exceptional markup and issue control, but within the Revit environment, MarkupX Pro also facilitates Revit family content placement, allowing PDF users to reference Revit elements on a PDF.

It does require a bit of setup to ensure that in Bluebeam, you align your markup for the Revit family content. However, from the point of linking and accelerating the design process, it is a relatively straightforward task!

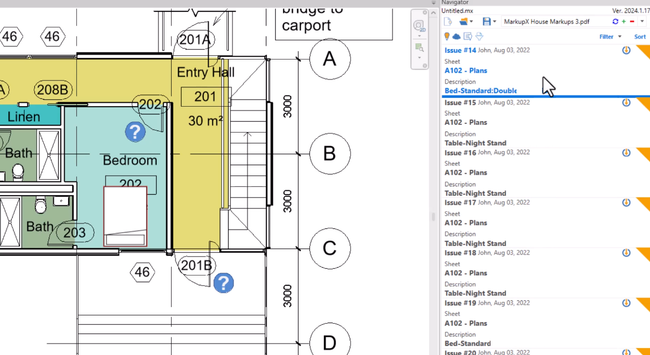

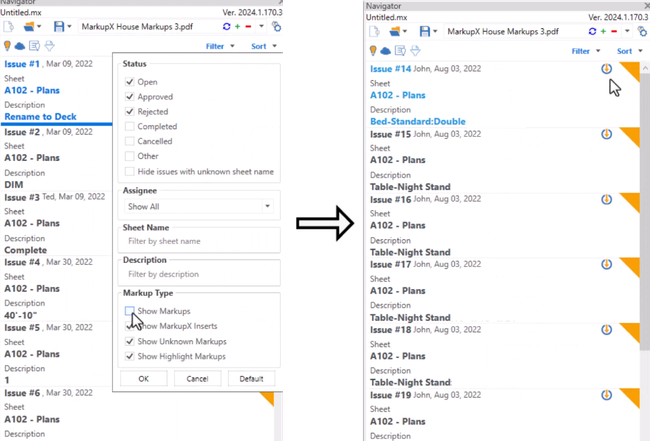

• Step 1: The process is very similar to processing issues and markups, with the difference being that in the MarkupX Navigator panel, there is an option to filter out markups to show only family placement issues.

• Step 2: After filtering the list for family placement, you can select an issue in the list view.

• Step 3: When the issue is selected, it will load the sheet, zoom to, and display the markup.

  Simply select the 'placement' icon, and the Revit family is placed into the design with the click of a button. After placing a family, MarkupX Pro automatically changes the status to complete, ready for you to perform the next placement.

Working with MarkupX Pro offers a faster, simpler, and improved experience for managing issues, especially with the Sync to Bluebeam capability. Users can create markups in Bluebeam and, through MarkupX Pro, display them in their AutoCAD, Civil 3D, and Revit authoring tools via the MarkupX Pro Navigator tool, which lists all markups that need to be reviewed.
